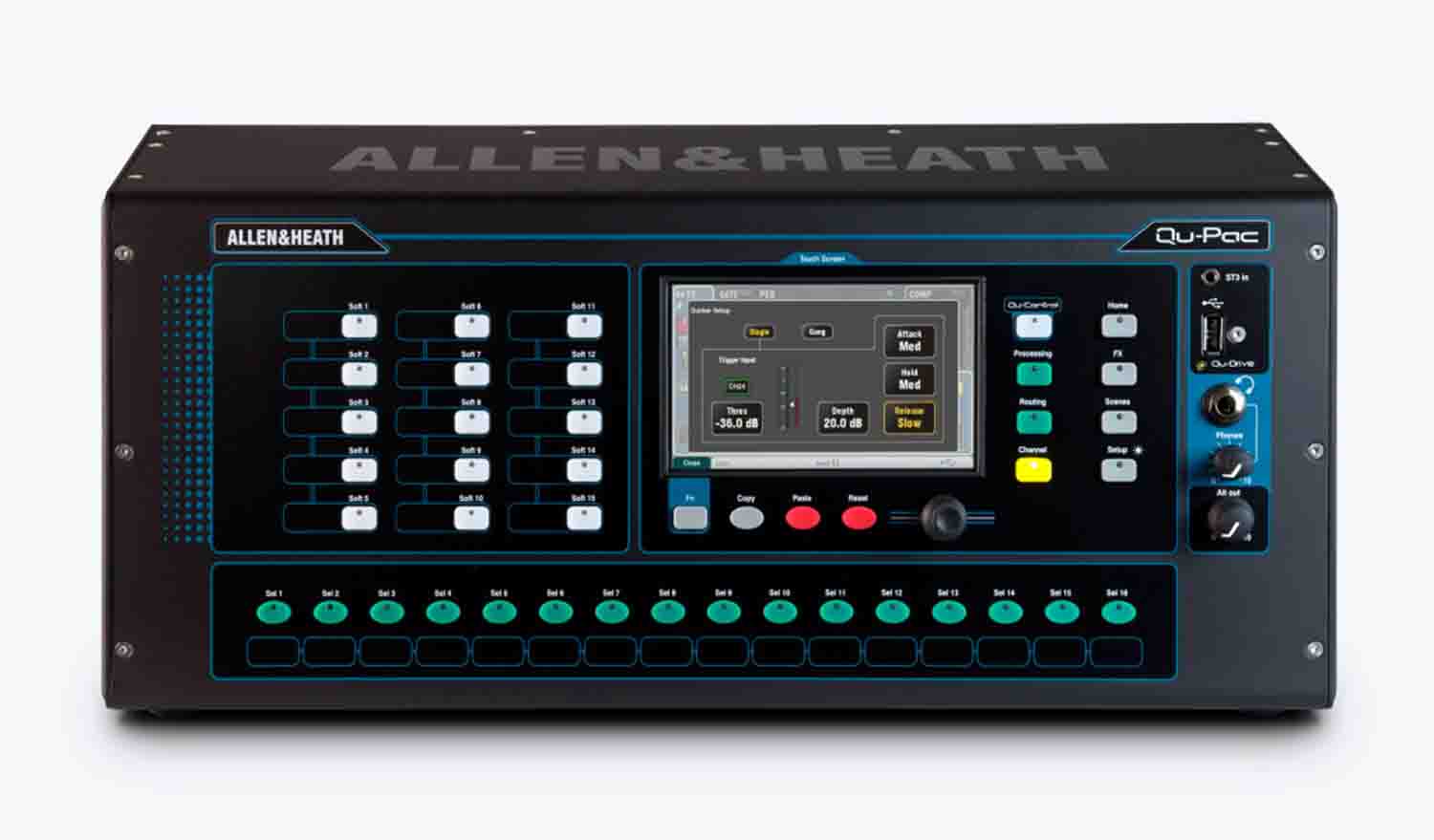

Allen & Heath Qu-Pac Digital Mixer

Compact Digital Mixer for Studio and Live Applications

$2499.00$1999.00

Rackmount/Desktop Digital Mixer with 16 AnalogiQ Preamps, 5 Cores of ARM Core Processing, iLive FX Engine, Touchscreen Control, Multitrack USB Recorder, dSnake Port, USB Audio Streaming, and Remote iPad Control App

Allen & Heath Qu-Pac Features:

16 acclaimed AnaLOGIQ recallable preamps
16 onboard Mic/Line Inputs (XLR/TRS)
Expandable up to 38 inputs via dSnake
Three Stereo Inputs (TRS)
16 Mono + three stereo input channels
12 onboard Mix Outputs (XLR)
Four Stereo Groups
Two Stereo Matrix Outs
AES Digital Out
Four DCA Groups
Four Mute Groups
Qu-Pad iPad App for all live mixing controls
Qu-You iPhone App for personal monitoring
Qu-Drive direct Multitrack recording and playback on USB drives
15 Soft Keys
16 Custom Select keys
Qu-Control custom screen to suit application
Four FX engines
Four FX Sends/Returns
32x32 USB Audio Interface
5" Touchscreen
iLive FX Library
Compatible with ME Personal Mixing System
Trim, polarity, HPF, gate, insert/ducker, 4-band PEQ, compressor, and delay on all Inputs
Insert, 4-band PEQ, 1/3 octave GEQ, compressor, and delay on all Mix outputs
Built-in Signal Generator
RTA with Peak Band indication

A New Standard in Compact Digital Mixing

48 channel, 96kHz rackmount digital mixer for live sound, AV and installation.

SQ-Rack is the ultimate tool for audio professionals, delivering Allen & Heath’s renowned 96kHz SQ core in a compact, rack-mountable design. Perfectly crafted to meet the demands of live sound and installation environments, SQ-Rack combines power, flexibility, and intuitive control in one versatile solution.

Core. Connectivity. Control.

SQ-Rack packs SQ’s 96kHz XCVI core into a shallow 4U rack-mount form factor with built-in I/O, powerful SLink connectivity, option cards, and multichannel USB. Enjoy hands-on controls and customizable screens, along with remote access via SQ apps for ultimate control of your audio.

Core

96kHz XCVI Processing

SQ-Rack is built on Allen & Heath’s renowned 96kHz XCVI FPGA engine, delivering exceptional high-resolution audio quality, ultra-low latency of <0.7ms and variable bit depths for optimized dynamic range. XCVI allows SQ to handle 48 input channels at 96kHz, with massive mix headroom thanks to a 96bit accumulator, and the sheer power to embed our acclaimed DEEP plugins into all 48 input channels and all mixes.

Connectivity

Comprehensive I/O Expansion

SQ-Rack features 16 high-quality onboard mic preamps and 3 stereo line inputs, and thanks to the integrated SLink port, adding more inputs and outputs is easy. Up to 48 mic inputs can be added via Allen & Heath’s extensive “Everything I/O” range of audio expanders.

You can just slot in one of our 64×64 audio networking cards for seamless integration into Dante and Waves networks, digital FoH/Monitor splits with SQ, Avantis and dLive mixers via SLink, or for MADI connectivity with third-party equipment.

Features:

48-input digital mixer with 96kHz FPGA processing

Best-in-class audio quality, with less than 0.7ms latency
16 x Mic Preamps, 4 x TRS Inputs, 1 x 3.5mm Input
Create up to 12 stereo mixes in addition to the main LR mix
SQ MixPad app (iOS/Android/macOS/Windows) for wireless mixing and offline show prep
SQ4You personal mixing app (iOS/Android) allows up to 8 performers to craft their own monitor mixes
3 stereo matrices
8 stereo FX engines with dedicated effects returns
7-inch capacitive touchscreen for navigation
SLink port for remote audio and I/O expansion
64-channel I/O port for network audio
Built-in 32 x 32 USB audio interface for multitrack recording
SQ-Drive allows for direct recording to a USB drive
Dedicated physical controls, plus 8 assignable SoftKeys
Automatic Mic Mixing makes it easy to manage large multi-mic setups
AES digital output
Rackmountable
Ideal for installation, touring artists, and IEM racks
Generous local I/O, SLink for Everything I/O compatibility, and option card slot for Dante/Waves/MADI/SLink
Complete control with SQ-MixPad, SQ4You, and SQ-Control apps
Dedicated Faders screen
Dedicated customizable SQ-Control screen for installations
