Allen & Heath CQ-20B
16-channel Rackmounted Digital Mixer with 16 Mic Preamps, Effects, 24-in/22-out SD Recording/Playback, 24-in/22-out USB Audio Interface, Wi-Fi, and Bluetooth
$1499.00$999.00
Allen & Heath CQ-20B Features:
A compact 16-channel digital mixer that fits in your stage rack
Exhibits outstanding sound quality at 96kHz
16 excellent-sounding microphone preamps and stereo Bluetooth input
Built-in 2.4GHz/5GHz Wi-Fi with auto channel
Preamp Gain Assistant takes all the guesswork out of setting levels
Feedback Assistant makes locating and neutralizing acoustic feedback frequencies a piece of cake
Instrument-based Quick inputs help you get a great sound quickly
Complete inputs allow for in-depth tweaking
Smart-FX engines include reverb, delay, modulation, and more
Remote control stagebox operation combines physical control and at-a-glance visual feedback
24-in/22-out recording and playback via an onboard SD card reader
Built-in 24-in/22-out USB audio interface enables top-shelf digital multitrack recordings using a computer and DAW
Designed for life on the stage, CQ-20B is the highest channel-count mixer in the range and is controlled via the free CQ MixPad app.
Mix Smarter. Work Faster. Sound Better.
CQ takes our renowned processing and effects, adds exciting new assistive mixing tools, and packages it all up into our smallest, and most affordable, digital mixer series yet.
Quick and Complete
Pick Your Mixing Style
Every input channel on CQ can be switched between two modes.
Quick Channels offer instrument and application specific processing with the ability to dial in a full channel of processing via a single knob.
Need more control? Switch to Complete Channels for advanced, in-depth tweaking of parameters.
Gain Assistant
Faster Setups
Setting the correct amount of gain for each channel isn’t the most exciting task, and it quickly eats into your setup time with multiple channels to take care of.
CQ’s Gain Assistant quickly and accurately sets the optimal gain level for your one or multiple channels and continues to monitor levels during the performance to prevent any nasty peaks or surprises.
Feedback Assistant
Say Goodbye to Feedback
CQ’s Feedback Assistant automatically detects and eliminates problem frequencies using up to 16 filters per output so you can mix with confidence – and forget about feedback.
Pristine Sound
You Won’t Believe Your Ears
CQ draws on technology from our latest generation of live sound consoles to deliver audio quality previously unimaginable at this level of mixer.
Pristine 96kHz audio is partnered with studio-grade onboard processing and an optimized suite of FX to set a new standard for what’s possible with ultra-compact digital mixers.
Built-In FX
A New Breed of Effects
CQ introduces a new suite of high-quality, user-friendly reverb, delay and modulation algorithms with instrument-specific presets for speedy setup.
Selected units feature our new FX Assist tool, automatically shaping the effects and dynamically responding to your input signal to ensure your mix is enhanced by FX, not engulfed.
Multi-Channel Control
DCAs & Mute Groups
CQ makes it easy to handle multiple channels simultaneously with 4 DCAs, each capable of controlling the level of any combination of inputs, outputs, and FX, for simple single-fader control of multiple channels, such as a drum kit, without affecting their relative levels.
There’s also 4 Mute Groups, enabling you to mute and unmute multiple channels at once via a single button, perfect for muting all stage mics or monitor speakers.
Recording & Playback
Capture the Performance, Wherever You Are
CQ packs in multiple recording and playback options to ensure you’re always ready to capture the performance.
An integrated USB audio interface enables easy multitrack recording, playback and streaming via your DAW, and an SD card slot is provided for reliable multitrack recording and playback on the go.
You can record and playback stereo files via USB key, and you can even playback from your phone via the built-in Bluetooth functionality.
The CQ-20B also includes an assignable Alt-Out – great for an engineer’s IEM connection.

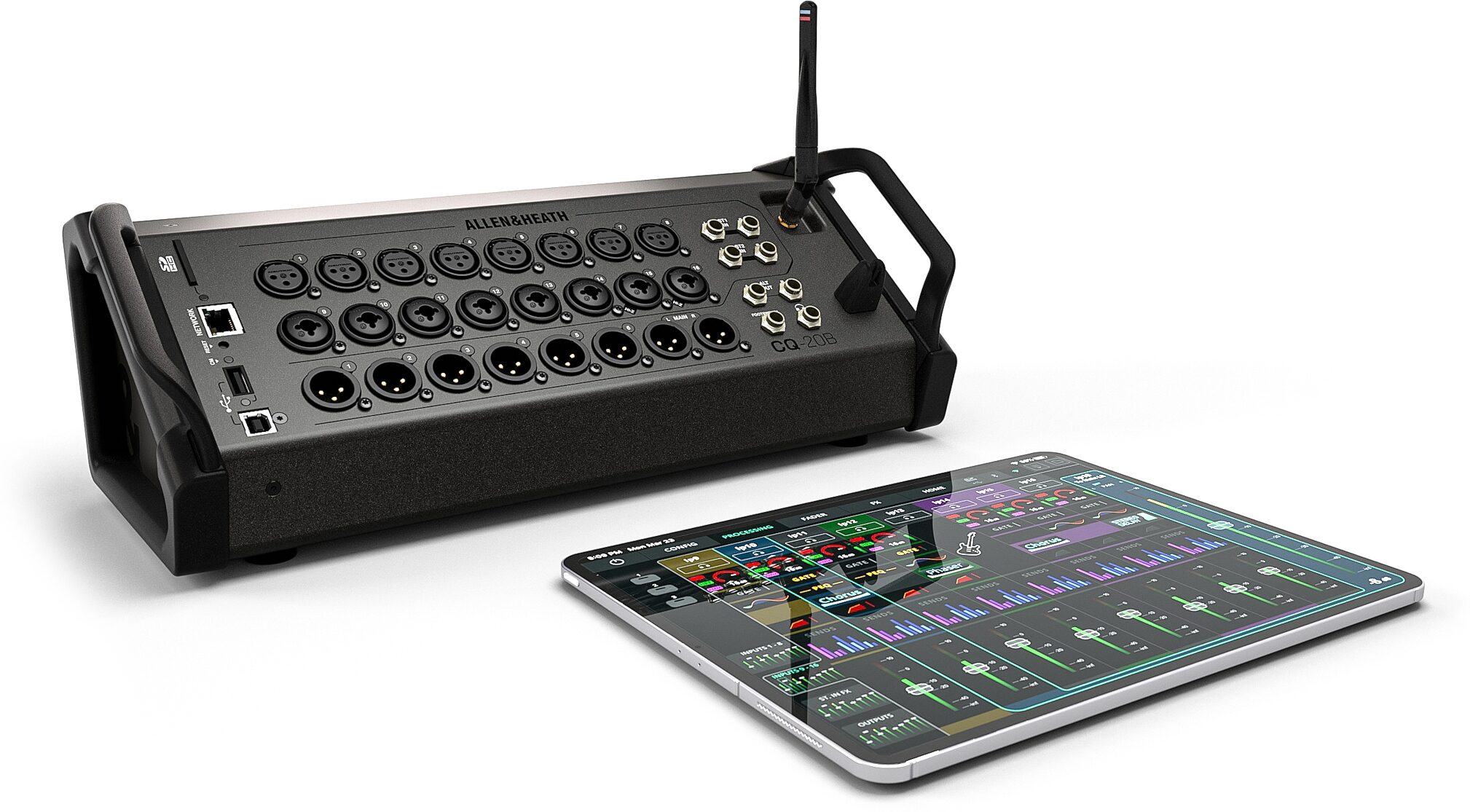

Integrated Wi-Fi
Leave Your Access Point at Home
The CQ-20B is designed to be controlled via the intuitive CQ MixPad app and features powerful integrated dual-band Wi-Fi so you don’t need to connect an access point or router to use apps for control of the mixer.
Just connect your devices to the CQ’s secure Wi-Fi network and you’re ready to go.

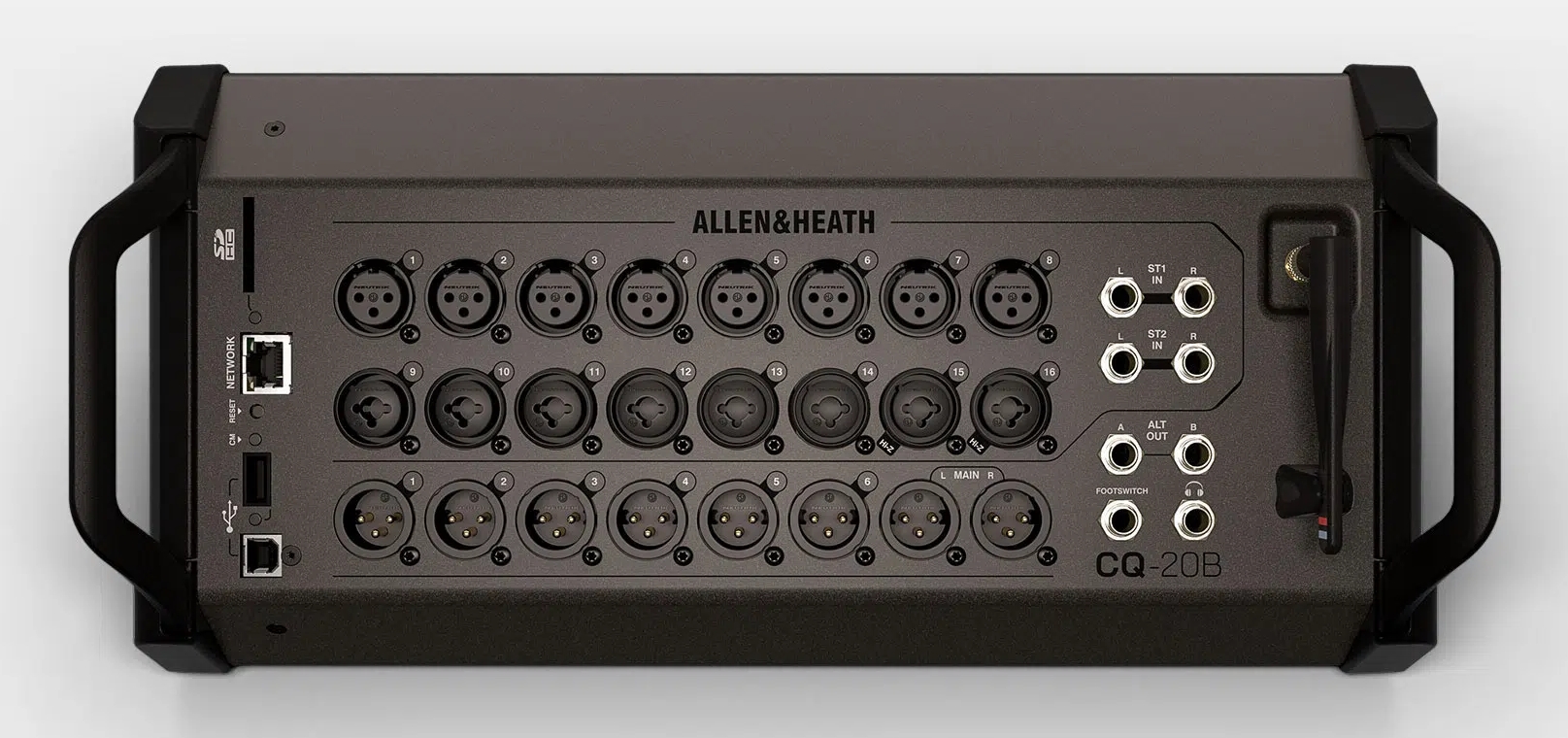

I/O
Get Yourself Connected
CQ-20B gives you all the connectivity you need to get going with 16 mic/line inputs plus two stereo line inputs.
When it comes to outputs, there’s a pair of main mix outputs plus 6 outputs for monitor mixes – enough for the whole band – and an assignable Alt Output is also provided.
AMM
Simplify Speech
The integrated Automatic Mic Mixer (AMM) means you can instantly reduce background noise and improve clarity for speech applications without lifting a finger.
AMM is available on all input channels, making it the perfect portable mixer for conferences, podcasts, debates and small-scale theatre productions.
Features:
Inputs
8 XLR
8 XLR/TRS Combi
4 TRS (stereo)
Outputs
2 XLR (Main)
6 XLR (Monitors)
Assignable Alt Out
24×24 USB-B interface (48/96kHz)
SD record/playback
24×24 (48kHz)
16×16 (96kHz)
